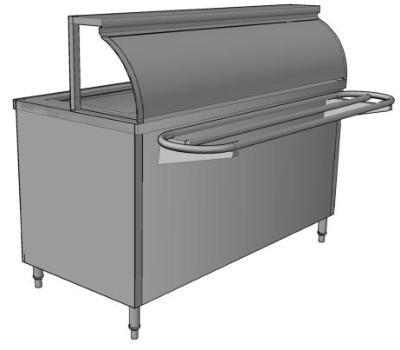

SS Food Warmer - Front View
with Optional Tray Slide
S.STEEL FOODWARMER WITH
SNEEZE GUARD
Dim.(mm): 1500 L x 710 W x 860 H + 355
18 ga. T-304 S.S. top plate, nosing,
stiffener
20 ga. T-304 control panel, side and
back panel, bottom shelf,
food pan adaptors
20 ga. T-304 S.S. water tank assembly
with 1" dia. S.S. pre-fabricated drain
with shut-off valve
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
Inclusion(s):
Immersion Heater 3 KW/2 KW x 220V
Electric Thermostat control
30 to 120°C range
Electric pilot light
Heavy Duty Male plug 101 2-prong
Complete with Electrical Connections
Sneeze Guard:
1/4" thick Curved Glass x 14" Arc length
18 ga. T-304 S.S. sneeze guard top
plate and nosing
Supported by 1.2 mm thick x 1" x 1"
T-304 S.S. square tubular legs with
1/8" thick x 1" x 1" T-304 S.S. flat bar
for curved or straight glass support
T5 flourescent light
Switch witch and other electrical
connections
S.STEEL TRAY STAND
Dim.(mm): 610 L x 710 W x 860 H
18 ga. T-304 S.S. top plate, nosing,
stiffener
20 ga. T-304 S.S. side, back and
front panel
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
S.STEEL URN AND BEVERAGE STAND
Dim.(mm): 800 L x 710 W x 860 H
18 ga. T-304 S.S. top plate, nosing,
stiffener
20 ga. T-304 S.S. front, side and
back panel, plain bottomshelf and
perforated false bottom for drain tank
20 ga. T-304 S.S. drain tank assembly
with 1" dia. S.S. pre-fabricated
drain with shut-off valve
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet

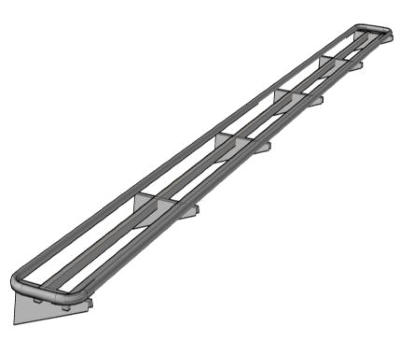

S.STEEL TUBULAR TRAY SLIDE
Dim.(mm): 2000 L x 300 W x 150 H
1.2 mm thick x 25 mm dia. S.S.
tubular tray slide
Supported by 16 ga. 1.5 mm thick T-304
S.S. pre-fabricated bracket at
required spacing
S.STEEL TRAFFIC RAIL
Dim.(mm): 2000 L x 850 H
38 mm dia. S.S. tubular traffic rail
2-pcs. Flanged Cover for 1-1/2" dia.
S.S. tubular legs
S.STEEL COLD PAN WITH
DISPLAY CASE
Dim.(mm): 710 L x 710 W x 860 H + 550
18 ga. T-304 S.S. top plate, nosing,
stiffener
20 ga. T-304 S.S. side, back and
front panel, bottom shelf,
ice tank assembly
20 ga. T-304 S.S. perforated false
bottom with 1-pc. 1" dia.
Pre-fabricated drain assembly with
shut-off valve
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
Display Case:
1/4" thick Clear Glass
20 ga. T-304 S.S. display case top plate
and nosing
Supported by 1.2mm thick x 1" x 1" S.S.
square tube
20 ga. T-304 S.S. glass support plate
and clips
T5 flourescent lamp
Switch and other electrical connections

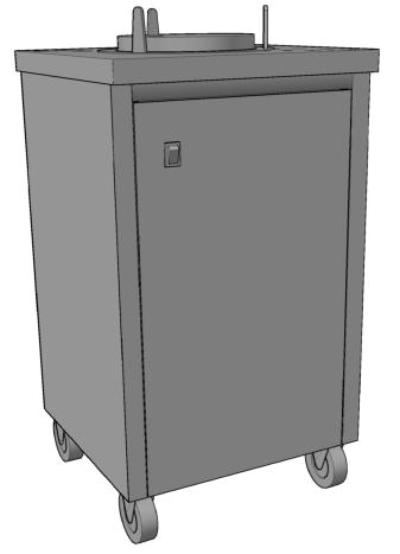

S.STEEL MOBILE PLATE WARMER
Dim.(mm): 450 L x 450 W x 850 H
18 ga. T-304 S.S. top plate, nosing,
framing, cylindrical plate tank
20 ga. T-304 S.S. side, front and
back panel
Supported by 1-set 4" dia. Rubber
caster wheel Plate Type swivel 2-pcs.
with brake and 2-pcs. without brake
16-rolls Mullion Heater 220V
Therm-O-Disc control
Compression spring
Toggle Switch
Heavy Duty Male Plug 101 2-prong
and other electrical connections
S.STEEL HEATED SILVER CADDY
Dim.(mm): 300 L x 300 W x 250 H
18 ga. T-304 S.S. top plate and nosing
20 ga. T-304 S.S. body and control panel
20 ga. G.I. insulation support plate with
hardiflex insulation
Rubber type footing
Canister Jar 100 mm dia. T-304 S.S.
Calrod Heater 6" dia. x 220V
Therm-O-disc Control
Electric Pilot Light
Toggle switch
Heavy Duty Male Plug 101 2-prong
and other electrical connections

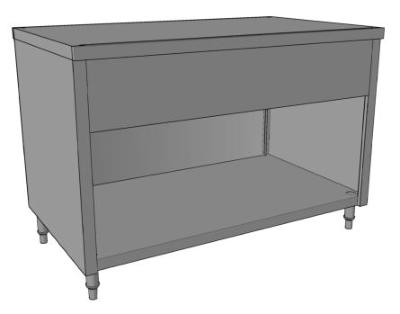

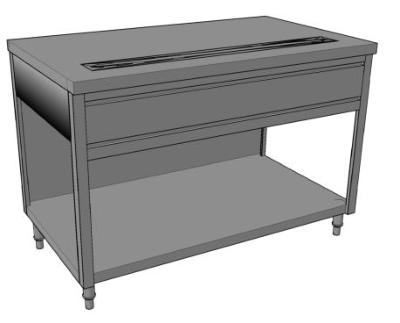

S.STEEL COUNTER TABLE
Dim.(mm): 1000 L x 710 W x 860 H
18 ga. T-304 top plate, nosing,
stiffener
20 ga. T-304 S.S. front, side and
back panel
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet

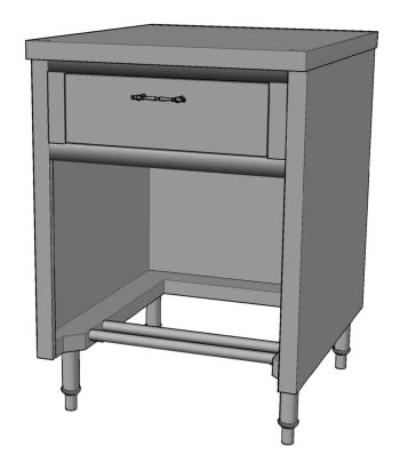

S.STEEL CASHIER’S TABLE
WITH DRAWER
Dim.(mm): 610 L x 710 W x 860 H
18 ga. T-304 S.S. top plate, nosing,
framing, stiffener
20 ga. T-304 S.S. drawer assembly,
side and back panel
Heavy duty drawer guide full extension
Heavy duty drawer lock with plastic
flush pull handle
1" dia. S.S. tubular footrest
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet

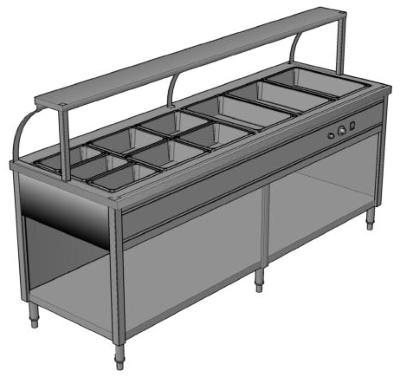

SS Food Warmer
Free-standing

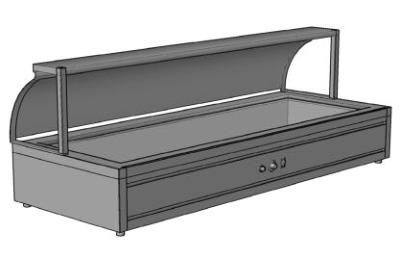

SS Food Warmer
Countertop

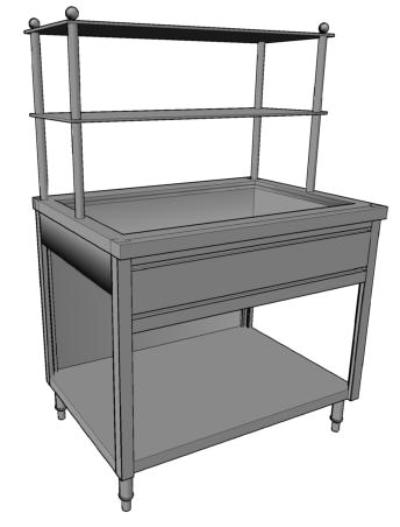

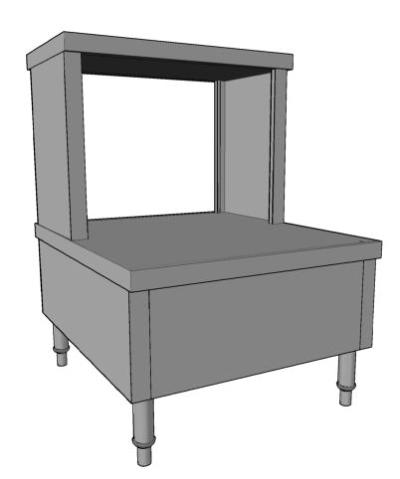

SS Cold Pan Display
with 2 Open Tiers

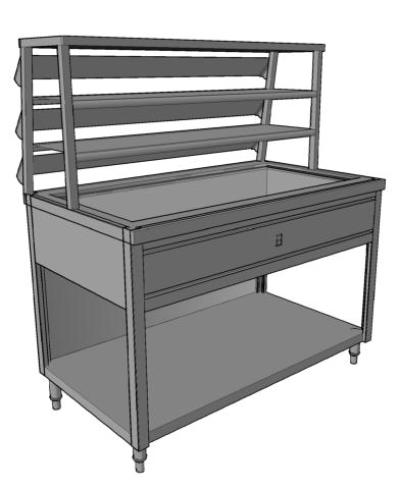

SS Cold Pan Display
with 3 Covered Tiers

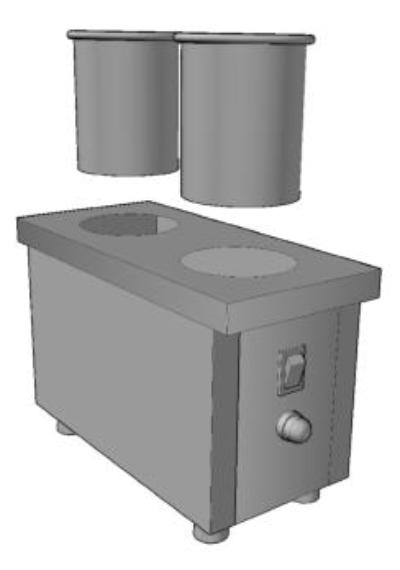

SS Silver Caddy - 2 Holes
SS Silver Caddy - 4 Holes

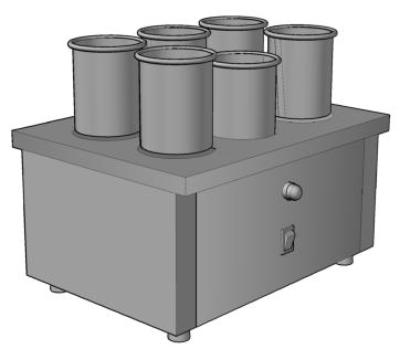

SS Silver Caddy - 6 Holes
