SS Mobile Griller and Griddle with Slotted Undershelf

SS Mobile Griller and Griddle with cover

SS Griller and Griller with Oven

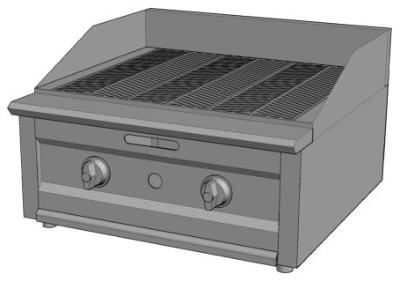

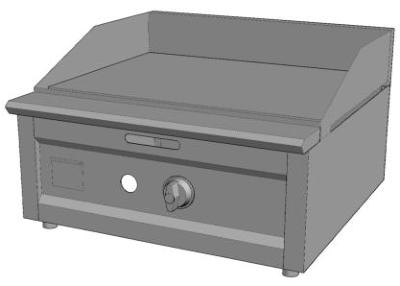

SS Griller - Countertop

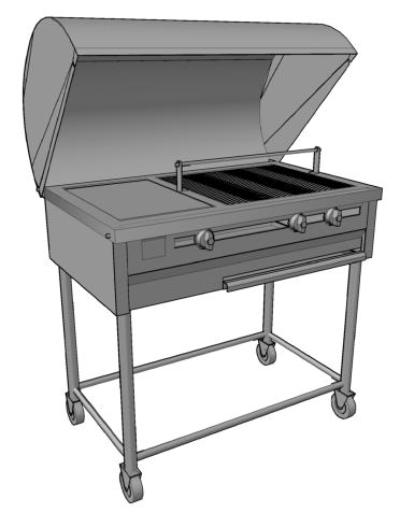

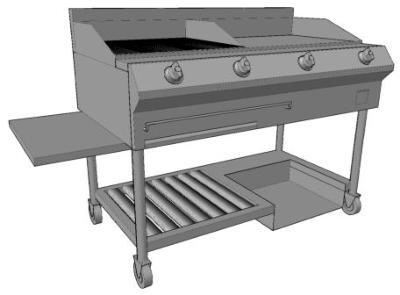

S.STEEL MOBILE GRILLER AND GRIDDLE COMBINATION Dim.(mm): 1050 L x 760 W x 860 H + 100 Dim.(mm): 710 L x 760 W x 860 H + 100 18 ga. T-304 S.S. top plate, nosing, backsplash, stiffener 20 ga. T-304 S.S. exterior panel, control panel, drip pan Cast iron V-patterned grilling grates M.S. Hot plate H-Type burner with air shutter Valve spark ignition 1/4" N.P.T. Gas valve with knob 1 set heavy duty caster wheel plate swivel type (2-pcs. with brake and 2-pcs. without brake) Optional: 20 ga. T-304 S.S. slotted bottomshelf 20 ga. T-304 S.S. fliptop cover with 3/8" dia. S.S. shafting for swing out 25 mm dia. S.S. tubular cross bracing

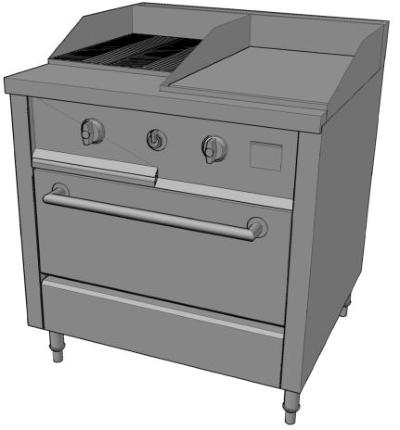

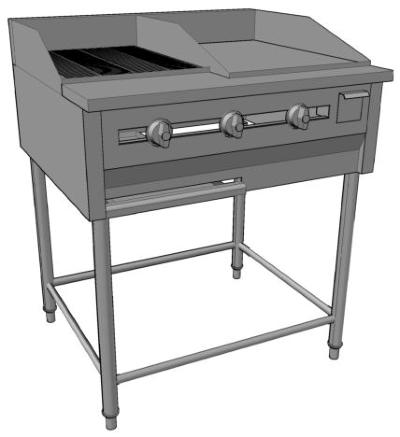

S.STEEL GRIDDLE AND GRILLER COMBINATION Dim.(mm): 710 L x 760 W x 860 H + 100 18 ga. T-304 S.S. top plate, nosing, backsplash, stiffener 20 ga. T-304 S.S. exterior panel, control panel, drip pan Cast iron V-patterned grilling grates M.S. Hot plate H-Type burner with air shutter Valve spark ignition 1/4" N.P.T. Gas valve with knob 38mm dia. S.S. tubular leg support on adjustable bullet type feet Optional: 20 ga. T-304 S.S. bottomshelf 25 mm dia. S.S. tubular cross bracing Optional oven specifications: 18 ga. T-304 S.S. oven framing 20 ga. T-304 S.S. exterior oven door panel 25 mm dia. S.S. tubular door handle with 1.5 mm pre-fabricated flanges 18 ga. B.I. interior oven body painted with hi-heat quick drying black enamel at 600°F 16 ga. B.I. fireplate assembly 5/16" dia. S.S. wire shelf framing with 1/4" dia. S.S. wire shelvings Gas oven thermostat control 250-550°F embedded on a 1" dia. B.I. gas manifold pipeline with fittings

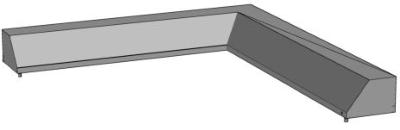

S.STEEL EXHAUST HOOD Dim.(mm): 2000 L x 900 W x 510 H 20 ga. T-304 S.S. hood, gutter, grease cup 24 ga. T-304 S.S. baffle filter 100 W heat proof lamp with explosion-proof fixtures, switch, electrical cable tap *Exhaust fan and ductwork not included.

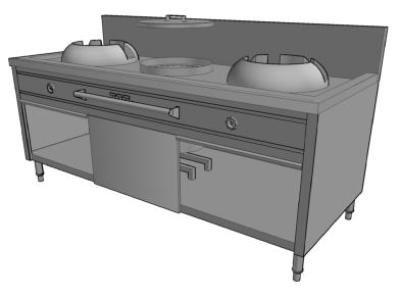

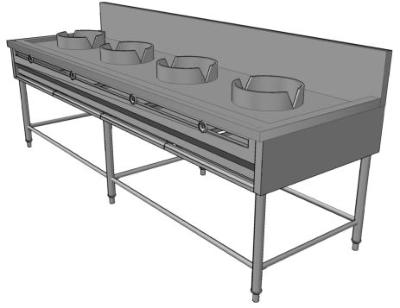

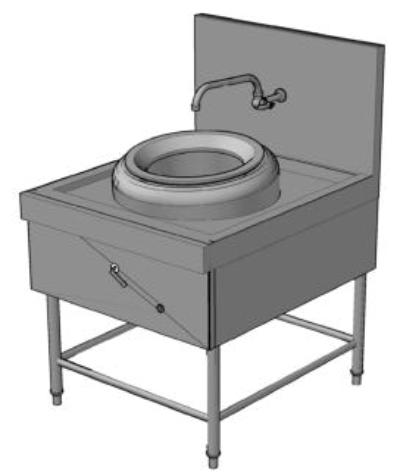

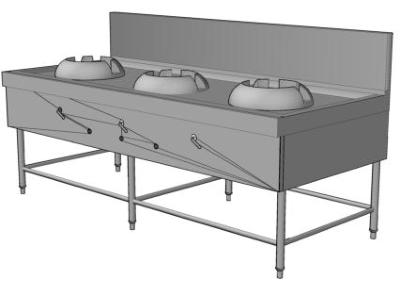

S.STEEL CHINESE WOK BURNER Dim.(mm): 1800 L x 760 W x 760 H + 250 18 ga. T-304 S.S. top plate, oil drain, nosing, backsplash, stiffener 20 ga. T-304 S.S. apron body, back panel, control panel 20 ga. T-430 SS drip pan Soup inset with wok faucet Cast iron cuba top grates 10-nozzle jet burner 3/4" heavy duty gas ball valve 1/4" gas ball valve for pilot light Embedded on a 3/4" dia. B.I. gas manifold pipeline with fittings 38 mm dia. S.S. tubular leg support on adjustable bullet type feet Optional: 20 ga. T-304 S.S. slotted bottomshelf 25 mm dia. S.S. tubular cross bracing

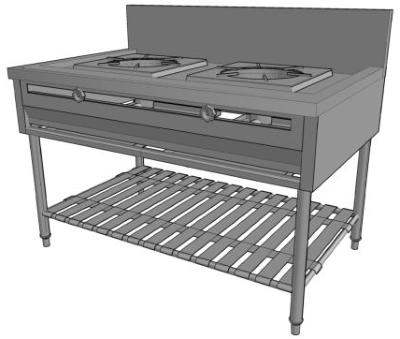

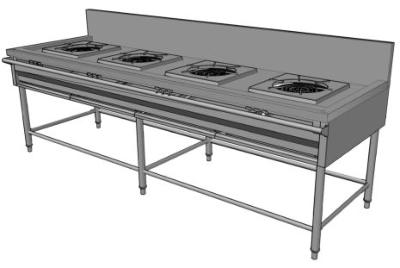

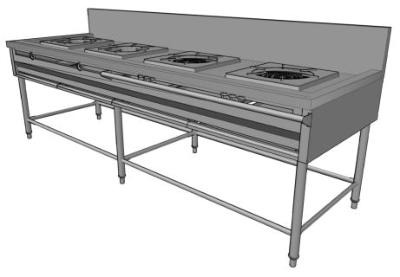

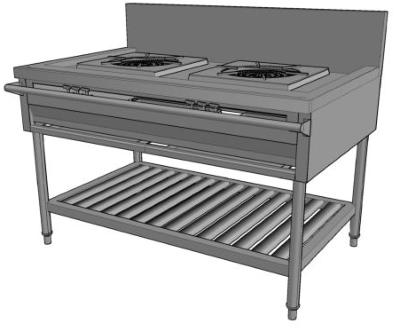

S.STEEL OPEN TOP HIGH-PRESSURE BURNERS Dim.(mm): 1800 L x 760 W x 760 H + 250 18 ga. T-304 S.S. top plate, oil drain, nosing, backsplash, stiffener 20 ga. T-304 S.S. apron body, back panel, control panel 20 ga. T-430 SS drip pan Cast-Iron Square top grates High Pressure Ransome burner 3/4" with air shutter Heavy duty gas ball valve 1/2" dia. embedded on a 1/2" dia. G.I. gas manifold pipeline with fittings 38 mm dia. S.S. tubular leg support on adjustable bullet type feet Optional: 20 ga. T-304 S.S. slotted bottomshelf 25 mm dia. S.S. tubular cross bracing 1/4" x 12-1/2" dia. M.S. Round Plate grating

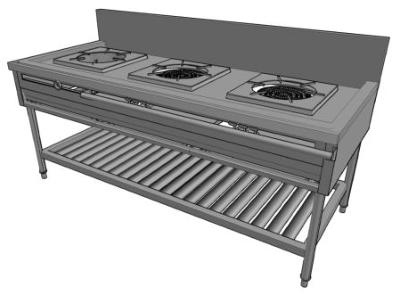

S.STEEL OPEN TOP LOW-PRESSURE BURNERS Dim.(mm): 1800 L x 760 W x 760 H + 250 18 ga. T-304 S.S. top plate, oil drain, nosing, backsplash, stiffener 20 ga. T-304 S.S. apron body, back panel, control panel 20 ga. T-430 SS drip pan Cast-Iron square top grates Low Pressure 3 ring burner with air shutter Level handle gas cock control Gas pilot light embedded on a 1" dia. B.I. gas manifold pipeline with fittings 38 mm dia. S.S. tubular leg support on adjustable bullet type feet Optional: 20 ga. T-304 S.S. slotted bottomshelf 25 mm dia. S.S. tubular cross bracing

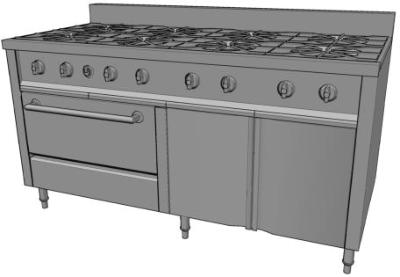

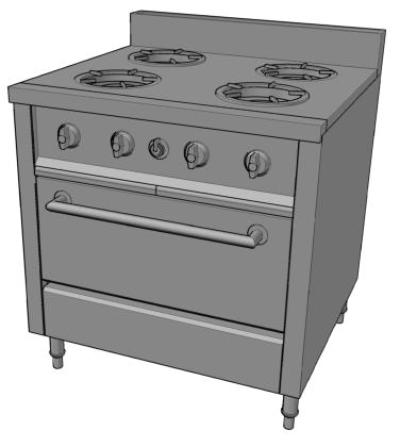

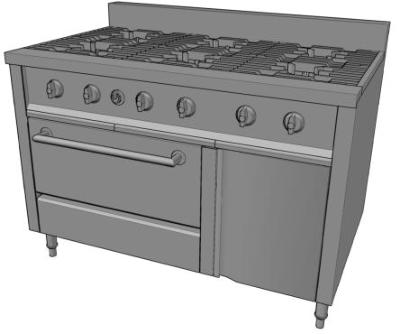

S.STEEL RANGE BURNERS W/ OVEN Dim.(mm): 710 L x 760 W x 860 H + 100 (4 burners) 1050 L x 760 W x 860 H + 100 (6 burners) 18 ga. T-304 S.S. top plate, nosing, backsplash, stiffener 20 ga. T-304 S.S. exterior panel, control panel, drip pan Low pressure cast iron range type burners Cast-iron Rectangular grates 1/4" N.P.T. Gas valve with knob Gas pilot light 38mm dia. S.S. tubular leg support on adjustable bullet type feet Oven specifications: 18 ga. T-304 S.S. oven framing 20 ga. T-304 S.S. exterior oven door panel 25 mm dia. S.S. tubular door handle with 1.5 mm pre-fabricated flanges 18 ga. B.I. interior oven body painted with hi-heat quick drying black enamel at 600°F 16 ga. B.I. fireplate assembly 5/16" dia. S.S. wire shelf framing with 1/4" dia. S.S. wire shelvings Gas oven thermostat control 250-550°F Optional: 20 ga. T-304 S.S. bottomshelf (no oven) 20 ga. T-304 S.S. swing out door assembly for cupboard (6 burners)

S.STEEL OPEN TOP COMBINATION HIGH/LOW-PRESSURE BURNERS Dim.(mm): 1800 L x 760 W x 760 H + 250 18 ga. T-304 S.S. top plate, oil drain, nosing, backsplash, stiffener 20 ga. T-304 S.S. apron body, back panel, control panel 20 ga. T-430 SS drip pan Cast-Iron square top grates Low Pressure 3 ring burner with air shutter Level handle gas cock control High Pressure Ransome burner 3/4" with air shutter Heavy duty gas ball valve 1/2" dia. embedded on a 1/2" dia. G.I. gas manifold pipeline with fittings Gas pilot light embedded on a 1" dia. B.I. gas manifold pipeline with fittings 38 mm dia. S.S. tubular leg support on adjustable bullet type feet Optional: 20 ga. T-304 S.S. slotted bottomshelf 25 mm dia. S.S. tubular cross bracing 1/4" x 12-1/2" dia. M.S. Round Plate grating

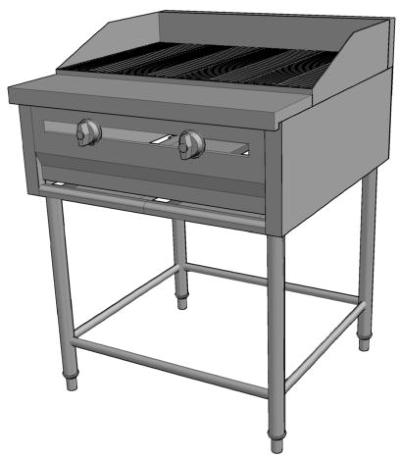

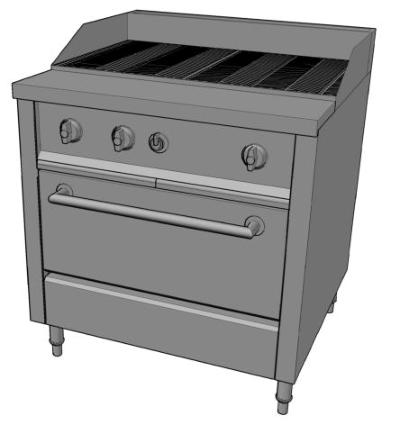

S.STEEL GRILLER Dim.(mm): 710 L x 760 W x 860 H + 100 18 ga. T-304 S.S. top plate, nosing, backsplash, stiffener 20 ga. T-304 S.S. exterior panel, control panel, drip pan Cast iron V-patterned grilling grates H-Type burner with air shutter 1/4" N.P.T. Gas valve with knob Valve spark ignition 38mm dia. S.S. tubular leg support on adjustable bullet type feet Optional: 20 ga. T-304 S.S. bottomshelf 25 mm dia. S.S. tubular cross bracing Optional oven specifications: 18 ga. T-304 S.S. oven framing 20 ga. T-304 S.S. exterior oven door panel 25 mm dia. S.S. tubular door handle with 1.5 mm pre-fabricated flanges 18 ga. B.I. interior oven body painted with hi-heat quick drying black enamel at 600°F 16 ga. B.I. fireplate assembly 5/16" dia. S.S. wire shelf framing with 1/4" dia. S.S. wire shelvings Gas oven thermostat control 250-550°F embedded on a 1" dia. B.I. gas manifold pipeline with fittings

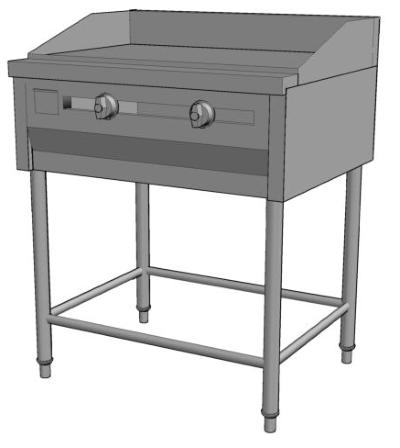

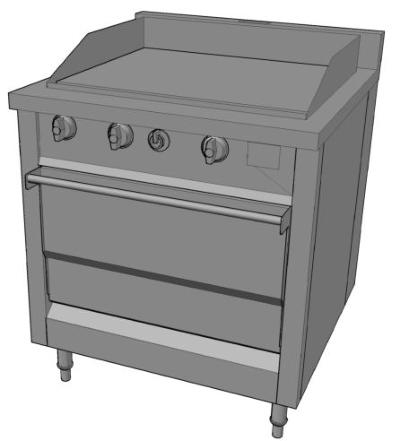

S.STEEL GRIDDLE Dim.(mm): 710 L x 760 W x 860 H + 100 18 ga. T-304 S.S. top plate, nosing, backsplash, stiffener 20 ga. T-304 S.S. exterior panel, control panel, drip pan M.S. Hot plate H-Type burner with air shutter 1/4" N.P.T. Gas valve with knob Valve spark ignition 38mm dia. S.S. tubular leg support on adjustable bullet type feet Optional: 20 ga. T-304 S.S. bottomshelf 25 mm dia. S.S. tubular cross bracing Optional oven specifications: 18 ga. T-304 S.S. oven framing 20 ga. T-304 S.S. exterior oven door panel 25 mm dia. S.S. tubular door handle with 1.5 mm pre-fabricated flanges 18 ga. B.I. interior oven body painted with hi-heat quick drying black enamel at 600°F 16 ga. B.I. fireplate assembly 5/16" dia. S.S. wire shelf framing with 1/4" dia. S.S. wire shelvings Gas oven thermostat control 250-550°F embedded on a 1" dia. B.I. gas manifold pipeline with fittings

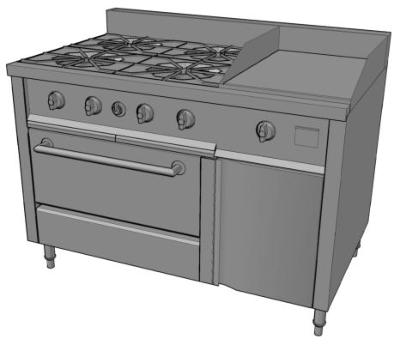

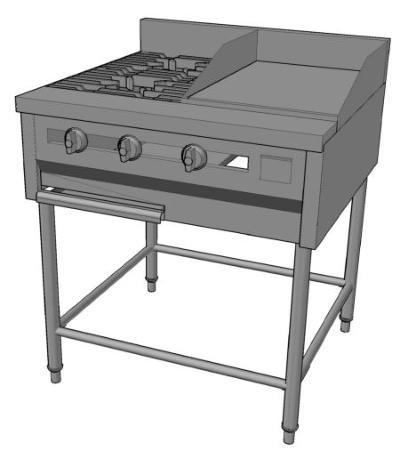

S.STEEL RANGE BURNERS WITH GRIDDLE Dim.(mm): 1050 L x 760 W x 860 H + 100 18 ga. T-304 S.S. top plate, nosing, backsplash, stiffener 20 ga. T-304 S.S. exterior panel, control panel, drip pan M.S. Hot plate H-Type burner with air shutter Valve spark ignition (on griddle) Low pressure cast iron range type burners Cast-iron Rectangular grates Gas pilot light (on burners) 1/4" N.P.T. Gas valve with knob 38mm dia. S.S. tubular leg support on adjustable bullet type feet Optional: 20 ga. T-304 S.S. bottomshelf 25 mm dia. S.S. tubular cross bracing Optional oven specifications: 18 ga. T-304 S.S. oven framing 20 ga. T-304 S.S. exterior oven door panel 25 mm dia. S.S. tubular door handle with 1.5 mm pre-fabricated flanges 18 ga. B.I. interior oven body painted with hi-heat quick drying black enamel at 600°F 16 ga. B.I. fireplate assembly 5/16" dia. S.S. wire shelf framing with 1/4" dia. S.S. wire shelvings Gas oven thermostat control 250-550°F embedded on a 1" dia. B.I. gas manifold pipeline with fittings

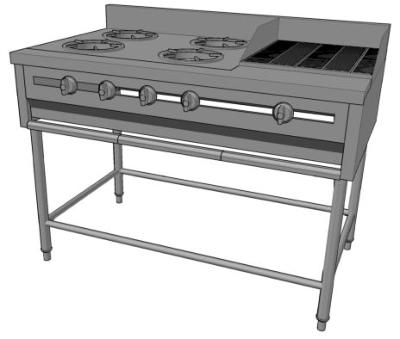

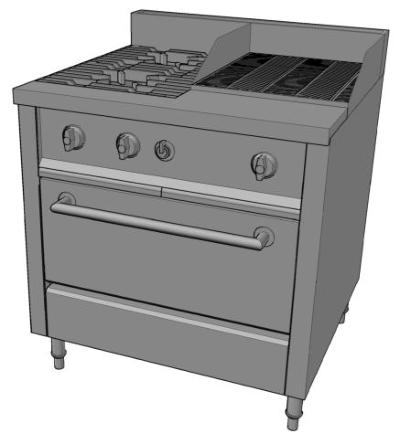

S.STEEL RANGE BURNERS WITH GRILLER Dim.(mm): 1050 L x 760 W x 860 H + 100 18 ga. T-304 S.S. top plate, nosing, backsplash, stiffener 20 ga. T-304 S.S. exterior panel, control panel, drip pan Cast iron V-patterned grilling grates H-Type burner with air shutter Valve spark ignition (on griller) Low pressure cast iron range type burners Cast-iron Rectangular grates Gas pilot light (on burners) 1/4" N.P.T. Gas valve with knob 38mm dia. S.S. tubular leg support on adjustable bullet type feet Optional: 20 ga. T-304 S.S. bottomshelf 25 mm dia. S.S. tubular cross bracing Optional oven specifications: 18 ga. T-304 S.S. oven framing 20 ga. T-304 S.S. exterior oven door panel 25 mm dia. S.S. tubular door handle with 1.5 mm pre-fabricated flanges 18 ga. B.I. interior oven body painted with hi-heat quick drying black enamel at 600°F 16 ga. B.I. fireplate assembly 5/16" dia. S.S. wire shelf framing with 1/4" dia. S.S. wire shelvings Gas oven thermostat control 250-550°F embedded on a 1" dia. B.I. gas manifold pipeline with fittings

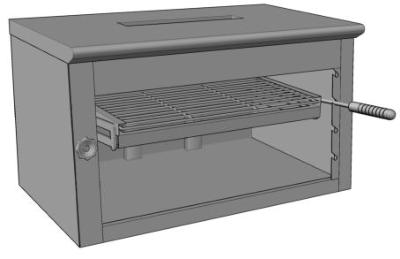

S.STEEL SALAMANDER BROILER Dim.(mm): 800 L x 450 W x 450 H 18 ga. T-304 S.S. top plate, nosing, adjustable shelf framing 20 ga. T-304 S.S. side and front panel 20 ga. B.I. insulation support plate 1/4" and 3/16" dia. S.S. single wire shelf with pre-fabricated handle Infrared burner with air shutter Needle valve control 1/2" N.P.T. 2-way Embedded on a 1/2" dia. G.I. gas manifold pipeline with fittings

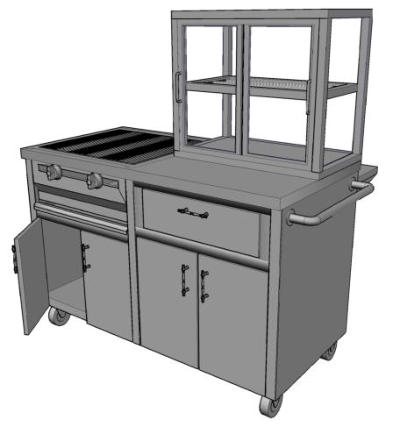

S.STEEL MOBILE GRILLER WITH DISPLAY CASE AND CABINET Dim.(mm): 1500 L x 760 W x 860 + 600 H 18 ga. T-304 S.S. top plate, nosing, stiffener 20 ga. T-304 S.S. side panel, front panel, control panel, drip pan, swing out door and drawer assembly with lock and plastic flush pull handle 20 ga. G.I. insulation support plate Cast iron V-patterned grilling grates H-Type burner with air shutter Valve spark ignition 1/4" N.P.T. Gas valve with knob 1 set heavy duty caster wheel plate swivel type (2-pcs. with brake and 2-pcs. without brake) Display case specifications: 25 x 25 mm S.S. square tube for tempered glass support 20 ga. T-304 S.S. top plate and bottom panel 18 ga. T-304 S.S. sliding door frame 3/8" dia. S.S. mid shelf 1/4" tempered glass Extension shelf specifications: 18 ga. T-304 S.S. extension shelf 1500 L x 200 W 16 ga. T-304 S.S. pre-fabricated bracket at required spacing

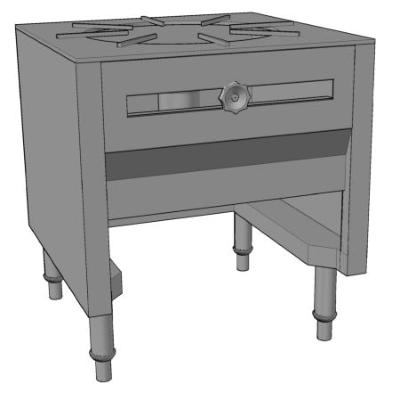

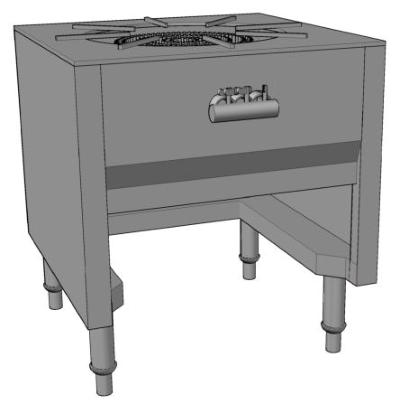

S.STEEL HIGH-PRESSURE STOCK POT BURNER Dim.(mm): 500 L x 500 W x 500 H 18 ga. T-304 S.S. stock pot burner framing, stiffener 20 ga. T-304 S.S. body and control panel 1/4" x 20" x 20" with 12" center hole M.S. top plate with 1/4" x 3/4" M.S. pre-fabricated grates High Pressure Ransome burner 3/4" with air shutter 1/2" N.P.T. Heavy duty high pressure needle valve control Gas Pilot Light Embedded on a 1/2" dia. G.I. gas manifold pipeline with brass fittings 38mm dia. S.S. tubular leg support on adjustable bullet type feet

S.STEEL LOW-PRESSURE STOCK POT BURNER Dim.(mm): 500 L x 500 W x 500 H 18 ga. T-304 S.S. stock pot burner framing, stiffener 20 ga. T-304 S.S. body and control panel 1/4" x 20" x 20" with 12" center hole M.S. top plate with 1/4" x 3/4" M.S. pre-fabricated grates Low Pressure C40 burner with level handle gas cock control Gas pilot light Embedded on a 1/2" dia. G.I. gas manifold pipeline with brass fittings 38mm dia. S.S. tubular leg support on adjustable bullet type feet
