BAR AND
COCKTAILS

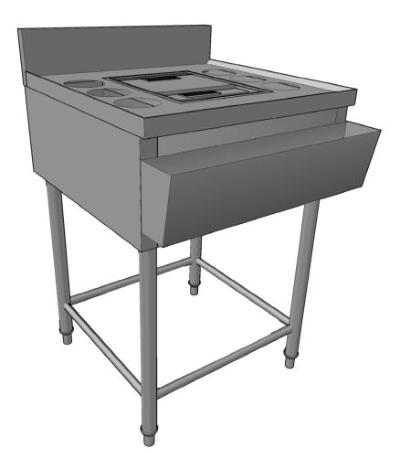

S.STEEL JOCKEY BOX WITH
ICE BIN AND SPEED RAIL
Dim. (mm): 1000 L x 600 W x 850 H
18 ga. T-304 S.S. top plate, inverted
V-edged nosing, backsplash, speed
rail, sliding door framing, stiffener
20 ga. T-304 S.S. ice tank assembly
with 1" dia. S.S. pre-fabricated drain
with shut-off valve
20 ga. T-304 S.S. apron body, side, back
and front panel, sliding door with
plastic flush pull handle
20 ga. G.I. insulation support plate
with 1" thick polyurethane
foamed-in-place insulation
25 mm dia. S.S. tubular cross bracing
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet

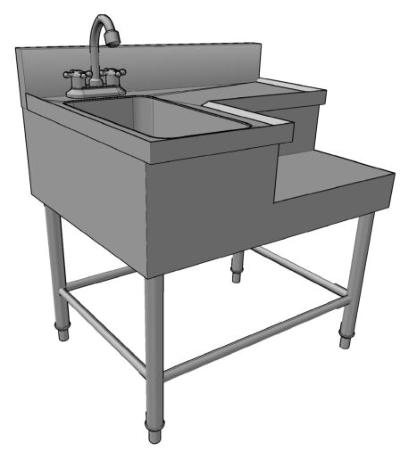

S.STEEL BLENDER STATION
WITH SINK
Dim. (mm): 900 L x 600 W x 850 H
18 ga. T-304 S.S. top plate, inverted
V-edged nosing, backsplash,
sinkbowl, stiffener
20 ga. T-304 S.S. apron body, side,
back and front panel
25 mm dia. S.S. tubular cross bracing
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
Inclusion(s):
1-1/2" dia. Sink strainer
with tail piece

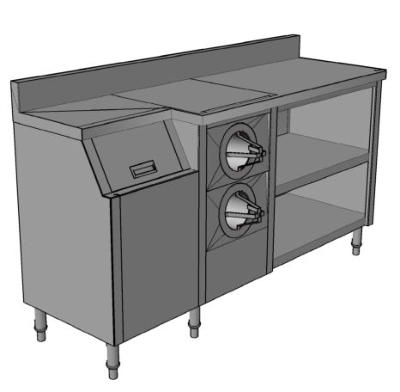

S.STEEL VENDO TABLE WITH
ICE BIN AND CUP DISPENSER
Dim. (mm): 1800 L x 600 W x 850 H
18 ga. T-304 S.S. top plate, nosing,
backsplash, ice bin framing, stiffener
20 ga. T-304 S.S. side and back panel,
exterior ice bin panel and lift-up
door assembly with plastic
flush pull handle
20 ga. T-304 S.S. mid and bottom shelf
20 ga. T-304 S.S. interior ice bin panel
with 1" thick polyurethane
foamed-in-place insulation
Cup dispenser for regular, large
and extra large cups
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet

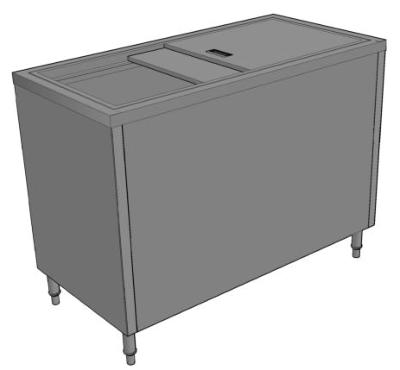

S.STEEL BOTTLE COOLER
Dim. (mm): 1000 L x 500 W x 850 H
18 ga. T-304 S.S. top plate, nosing,
framing, stiffener
20 ga. T-304 S.S. exterior bottle cooler
panel and sliding door assembly with
plastic flush pull handle
20 ga. T-304 S.S. interior panel with
2" thick polyurethane
foamed-in-place insulation
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet

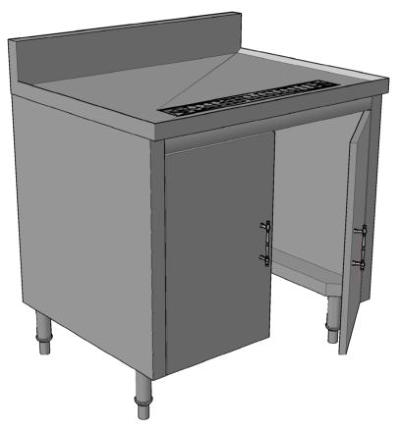

S.STEEL KEG TABLE WITH
SWING-OUT DOORS
Dim. (mm): 1000 L x 600 W x 850 H
18 ga. T-304 S.S. top plate, inverted
V-edged nosing, backsplash, framing,
stiffener
20 ga. T-304 S.S. side and back panel,
swing out door assembly with
plastic flush pull handle
20 ga. T-304 S.S. drain assembly with
1" dia. S.S. pre-fabricated drain
20 ga. T-304 S.S. perforated false
bottom
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet

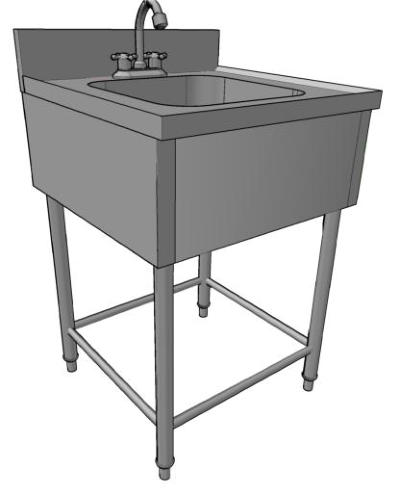

S.STEEL BAR SINK
Dim. (mm): 600 L x 600 W x 850 H
18 ga. T-304 S.S. top plate, inverted
V-edged nosing, backsplash,
sinkbowl, stiffener
20 ga. T-304 S.S. side, front and
back panel
25 mm dia. S.S. tubular cross bracing
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
Inclusion(s):
1-1/2" dia. Sink strainer with
tail piece
1-1/2" dia. Metal Chrome P-trap
